PURION® POOL 40 PVC-U
PURION® UV systems are characterized by an extraordinarily high disinfection performance with a compact design and low energy consumption. They are designed in accordance with applicable laws, standards and directives.

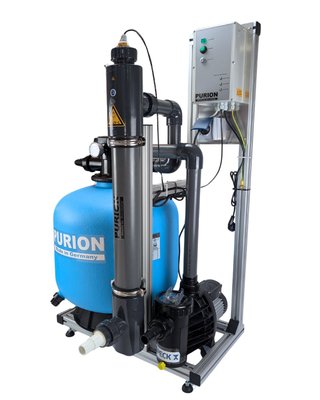

The PURION POOL 40 PVC-U system is an integrated concept consisting of filtration and UV-based disinfection of pool water. It is used for the sterilization of circulating water from pools. The upstream filter unit with a "top mount" 6-way valve consists of a polyethylene filter tank, filled with activated filter granules made of special quartz, as well as a self-priming Speck Badu Magic II 6 centrifugal pump.
A pre-filter eliminates any potential turbidity in the water. The subsequent UV-based disinfection prevents biological activities – especially algae formation. Compared to conventional chemical water treatment, up to 95% of the chemicals used can be dispensed with.
The disinfection unit can be equipped with lamp life monitoring (OTC). The PURION UV lamps used are characterized by a long service life, high disinfection performance, and low energy consumption. The compact design allows for easy, tool-free lamp removal and convenient lamp replacement, for example at the end of the lamp's useful life.
Technical Data
| Manufacturer | PURION GmbH |
| Type | PURION® Pool 40 PVC-U |
| Pool size | 40 m³ (20h operation) 30 m³ (15h operation) |
| Dimensions L x W x H in mm | 770 x 530 x 940 |
| Weight (without filter tank filling) | 34 Kg |
| UV system | PURION 2001 PVC-U |
| Monitoring option | OTC |
| Temperature range | 2 - 40°C |
| Max. flow rate centrifugal pump | 6 m³/h |
| Operating pressure | 2 bar |
| Amount of special quartz | 35 Kg |
| Lamp service life | 10,000 h |
| Filter tank material | Polyethylene |
| Filter tank valve | top mount 4-way valve |
| Connection | Stepped nozzle D 40/32 |
| Filter medium | AFM active |
| Protection class | IP 54 |
| Electrical connection | 110-240 V 50/60 Hz |
| Fuse protection | 10 A |
| Pump | Badu Speck Magic II |
| Pump type | Self-priming |
| Power consumption | UV lamp: 48W Pump: 450W |
Advantages
- plug and play system for immediate operation
- up to 95% reduced chemical input compared to conventional methods
- cost savings through reduced chemical costs
- low-maintenance operation
- low operating costs
For cleaning the immersion pipe system, we recommend the PURION Service KIT.
